How to deploy a new VM on Hyper-V








Create a New Virtual Machine

Without any delays let’s open our Hyper-V console and create a new VM. You will need to navigate to your Hyper-V noderight click it and selectNewVirtual Machine. You can also use the Actions menu from the right side of the panel:
Hyper-V Manager
You will need to set a name for the Virtual Machine and select its location if you haven’t configured a repository for your Servers:
New Virtual Machine Wizard

Specifying Generation and the Amount of Memory

In the following section you will have to select one of the two available VM generations. The first generation was introduced in previous versions of Hyper-V and this was the only one available until now.
Virtual Machine - Specify Generation
The second generation brings some new features while dropping older ones. The new generation has a different firmware and new devices. For example, instead of the PCAT Bios used in the first generation, this new technology uses a UEFI firmware. It also dropped the IDE controller, S3 Video, floppy controller, i8042 keyboard controller, PS/2 mouse, the Programmable Interrupt Timer (PIT), the Programmable Interrupt Controller (PIC), the Super I/O device. Instead of all these older features, new devices were added with increased capabilities. I’m not familiar with some of these technologies so instead I will give you a reference link to an interesting article describing Hyper-V generation 2 VM. The security component has been revised and the new generation of VMs has a lower attack surface. Note that you cannot change the generation of your Virtual Machine once you’ve deployed the Server.
You will have to set the amount of memory that your new Server will use. For demonstration purposes I will create a VM with 512 MB of RAM since I’m already using a VM running Hyper-V and I have hardware limitations.
Virtual Machine - Assign Memory

Network Configuration

An important step when creating a new VM is the networking configuration part. You will need to select a device that will bind to the VM network adapter. You can select a virtual switch connected to your physical interface or create a new virtual switch. We’ve talked about these components in aprevious article.
Virtual Machine - Configure Networking

Connecting a Storage Device

storage device must be connected to your Virtual Machine. You have three methods available: create a new virtual hard disk, use an existing virtual hard disk or attach a virtual hard disk later. I will choose the first option and create a new 10 GB virtual hard drive on my local disk.
Virtual Machine - Connect Virtual Hard Disk

Choosing an Installation Option

In the last part of this operation you will need to choose an installation option from the following:
Install an operating system later
Install an operating system from a bootable image file
Install an operating system from a network-based installation server
Based on your needs you can further proceed with the OS Installation. I want to show you how to deploy a new Server using WDS once you’ve created a new Virtual Machine using Hyper-V so I will not install the Operating System right now.
Virtual Machine - Installation Options

Virtual Machine Summary

At the end of the Wizard there is a summary of the new Virtual Machine, make sure that everything is correct and proceed with the VM creation. Your new Server will appear in the Hyper-V Manager console, you can now start the Server by clicking the Start button from the Actions menu.
Virtual Machine - Hyper-V Manager Console
The whole process can be completed much faster using Windows Powershell. Hyper-V module is added to Powershell when you install this Server Role. Open up Powershell and type Get-Module -ListAvailable to view the modules available on your Windows Server. Now type Import-Module Hyper-V and then Get-Command -Module Hyper-V to view all available commands. To create a new VM you’ll need to use the New-VMcmdlet. Check out its help page by typing get-help New-VM -full. To create an identical machine as the one we’ve created earlier, you will need to type in the following:
New-VM -Name “Server2″ -ComputerName SRV2 -Path C:\VM\Server2 -MemoryS
tartupBytes 512MB -NewVHDPath C:\VM\Server2\Server2.vhdx -NewVHDSizeBytes 10GB -Generation 2
Hyper-V Manager Windows Powershell
That’s about it for this article folks, I hope we’ve covered all major aspects of VM creation in Hyper-V. We will talk about this technology in future articles that’s why I hope this one will serve you well in learning new things about Hyper-V. Wish you all the best!

Add 1st Windows Server 2012 Domain Controller to Existing Network

In this article I want to show you how to install and configure Domain Controller running the latest Windows Server 2012 OS. Note that for the following demonstration I will be using a Virtual Machine and my test environment works at the Windows Server 2008 R2 functional level.
Once you've started the VM and configure all the necessary hardware details, the server will boot and the Installation Wizard will start. I'm using an ISO file attached to my VM that includes multiple Windows Server 2012 versions. From the available Operating Systems I will choose Windows Server 2012 Datacenter (Server with a GUI)
Install Windows Server 2012
Once you click "Next", the installation process will start. You will need to wait until the installation is completed and the server is rebooted:
After the restart, all the necessary components will be configured. This operation will take some time depending on the Server's hardware configuration:
Windows Server Restart
The first thing that we need to do is to set up a static IP address. Navigate to Control Panel\Network and Internet\Network Connections and select the network interface connected to your network:
Set Up Static IP Address
Now right click the network interface and select "Properties", navigate to Internet Protocol Version 4(TCP/IPv4) and set up the IP configuration. Note that you should always use a static IP configuration for your Domain Controllers. If for whatever reason you decide to use DHCP servers for assigning IP addresses, make sure you create a failover infrastructure:
IPV4 DHCP Server Failover Infrastructure
We can achieve the same results using the netsh command from command prompt:
netsh interface ipv4 set address “local area connection” static 10.10.10.9 255.255.255.0 10.10.10.1
netsh interface ipv4 set dnsservers “local area connection” static 10.10.10.10
I will also change the name of the server. Navigate to Control Panel\System and Security\System and click on "Change settings" from the Computer name, domain and workgroup settings section:
Change Name of Server 2012
Now change the server's name and press "OK". You will need to restart the server after this step is complete:
Change Name of Server 2012 OK
Now it's time to install and configure the Active Directory Domain Services role. Open the Server Manager console and click on "Add roles and features" button:
Server Manager Add Roles
From the roles section, select "Active Directory Domain Services" server role. You can also read the short description available on the right side of the panel:
Configure Active Directory Domain Services
When installing AD DS role, the Wizard will prompt you that additional components will be installed (AD Domain Services and Lightweight Directories Services tools):
Ad Domain Services Add Roles Features Wizard

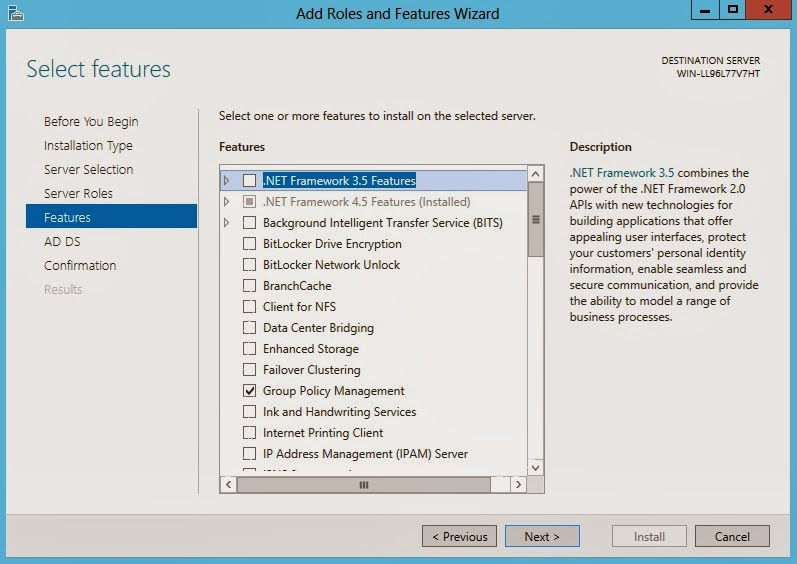

For now, there is no need to install any features, the wizard will automatically select any feature that is needed for the Active Directory installation:
Select Features Active Directory Installation
After the installation is completed, it's time to promote the server to a Domain Controller. Note that dcpromo command does not exist anymore and the promotion process is made from the tasks section in Server Manager:
Server Manager Dashboard Tasks
Click on the "Promote this server to a domain controller" link to start the promotion wizard. Select the option "Add a domain controller to an existing domain", specify the AD domain and credentials and click "Next":
Promote Server to Domain Controller
Because I want to migrate all my infrastructure to Windows Server 2012, I will also install the Domain Name System (DNS) service and I will configure this server as aGlobal Catalog (GC). You will need to configure a Directory Services Restore Mode (DSRM) password:
Directory Services Restore Mode Password
In the following section you'll need to specify the replication mode. If desired, you can enable the Active Directory replication from a specific Domain Controller:
Specify Replication Mode
Next, you'll need to specify the Database, Log Files and SYSVOL folders:
Specify Databas Log Files and SYSVOL
The server will perform a Requisitions Check and if this operation is completed successfully, the installation process will begin:
Requisitions Check Installation
After the server is restarted it will be fully integrated with Active Directory Domain Services.
This is how you can add a Windows Server 2012 DC to an existing domain. Note that my domain is still running at the 2008 R2 functional level. Once I upgrade all my Domain Controllers to Windows Server 2012, I can rise the domain functional level. This article should be helpful when performing a domain or forest migration from Windows Server 2008 to Windows Server 2012.
